GoPRO HD HERO Helmet Camera

by **Ryo.Yashimura** on Wed Jul 28, 2010 3:06 pm

# 1 HD HERO Camera (5 megapixel)
Rechargeable 1100 mAh Lithium-Ion Battery
Waterproof Quick-Release Housing (180�/60 m)
Headlamp-Style Head Strap
Vented Helmet Strap
Curved, 3M� Adhesive Mounts
Flat, 3M Adhesive Mounts
Three-Way Pivoting Side Arm Assembly
Quick-Release Buckles
USB Cable
Component Video (HDTV) Cable
Composite Video + Audio Out Cable
Record up to 2.5 hours on a single charge and up to 9 hours total on a 32GB SD card (not included)

by **Ryo.Yashimura** on Wed Jul 28, 2010 3:16 pm

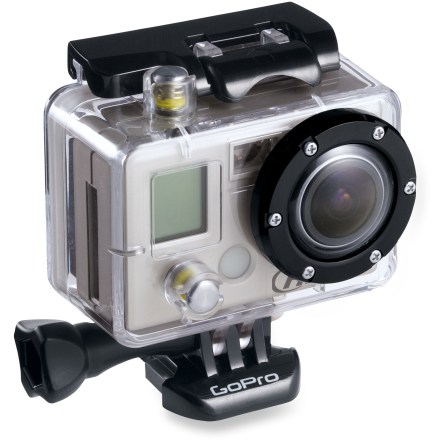

GoPro�s HD HERO is the world�s highest performance wearable 1080p HD video and still photo camera. Professional quality 1080p / 960p / 720p HD resolutions record at 30 and 60 frames per second (60 fps in 720p). Record up to 2.5 hours on a single charge and up to 9 hours total on a 32GB SD card (not included).

The camera can also shoot automatic 5 megapixel photos at 2/5/10/30 and 60 second intervals during your activity, hands free. Press the shutter button once at the start of your activity and record up to 2.5 hours of poster-print quality photos of you and your friends, living it up.

Included is one mount for attaching the camera to a helmet or other curved surface as well as the quick-release HD housing which protects the camera.

The HD HERO Naked is compatible with all other GoPro HERO camera mounting accessories, so it's very easy to expand the functionality of your camera to suction cup to vehicles, clamp to bike handlebars and seat posts, mount to surfboards, and even be worn on the wrist or chest.

Waterproof to 180� / 60m and protected from rocks and other hazards thanks to its removable polycarbonate housing. Replacement housings and lens kits are available, making repairs or refurbishing your HD HERO camera affordable and convenient. It's a GoPro...go for it.�

What's Included:
1 HD HERO Camera (5 megapixel)
1 Rechargeable 1100 mAh Lithium-Ion Battery
1 Waterproof Quick-Release Housing (180�/60 m)
1 Curved, 3M� Adhesive Mount
1 Quick-Release Buckle
1 USB Cable
1 Component Video (HDTV) Cable
1 Composite Video + Audio Out Cable
Warranty: One Year

Tech Specs:

Camera Optics
Lens Type: Fixed Focus (2ft/.6m � ∞), glass
Aperture: f/2.8 (high performance in low-light situations)
Angle of View: 170� ultra wide angle in WVGA, 720p, or 960p mode
Angle of View: 127� wide angle in 1080p mode

Video
HD Video Resolution Modes: (subject to change, pending final firmware release)
1080p = 1920x1080 pixels (16:9), 30 fps, 15 Mbit/s data rate
960p = 1280x960 pixels (4:3), 30 fps, 12 Mbit/s data rate
720p = 1280x720 pixels (16:9), 60 fps, 15 Mbit/s data rate
720p = 1280x720 pixels (16:9), 30 fps, 8 Mbit/s data rate
WVGA = 848x480 pixels (16:9), 60 fps, 8 Mbit/s data rate
Sensor Type: 1/2.5" HD CMOS, 2.2�m-sized pixels
Light Sensitivity: Super low-light sensitivity (>1.4 V/lux-sec)
Video Format: H.264 compression, saved as Windows- & Mac-compatible MPEG4 (.mp4) file
Exposure Control: Auto with user selectable center weighted average and spot metering settings
White Balance: Auto

Audio
Microphone: Built-in, mono with AGC (automatic gain control)
Audio Format: 48 kHz, AAC audio compression

Resolution: 5 megapixel
Capture Modes: Single shot, photo every 2, 5, 10, 30 or 60 secs.; 3 photo burst; self-timer

Storage
Memory: SD card, up to 32GB capacity (SDHC)
Average recording times (using 32GB SD card):
1080p (30 fps): 4h 21m
960p (30 fps): 5h 26m
720p (60 fps): 4h 21
720p (30 fps): 8h 09m
WVGA (60 fps): 8h 09m

Camera Connectors & Cables
PC Connection: USB 2.0 (data connection and battery charging)
HDTV Out: HD NTSC & PAL (component cable incl.)
Audio Out: Combo 2.5mm jack with stereo audio and composite video out
PC Compatibility: Windows� Vista or Windows� 7; Mac OS� X 10.4.11 and later

Power & Battery
Battery Type: Rechargeable 1100 mAh lithium-ion
Battery Life: Approx. 2.5 hrs
Charging: via USB to computer or optional power adapter
Charge Time: 80% capacity after 1 hour with optional power adapter; or 2 hours with a computer�s USB port

Waterproof Camera Housing
Depth Rating: Up to 180 feet / 60 meters
Construction: Polycarbonate and stainless steel
Hardware: Stainless steel

Size & Weight
Dimensions (H x W x D): 1.6� x 2.4� x 1.2� (42mm x 60mm x 30mm)
Weight: 3.3oz (94g) incl. battery, 5.9oz (167g) incl. housing

Optional Accessories
Additional Rechargable 1100 mAh Lithium-Ion Battery (not yet available for pre-order)
Full Line of Mounting Accessories

Optional Expansion BacPacs�

An innovative expansion port on the back of the camera, the HERO Bus� accepts optional Expansion BacPacs to expand the functionality of HD HERO cameras:
LCD BacPac for on-camera preview and playback (not yet available for pre-order)
Endurance Battery BacPac for double battery life (not yet available for pre-order)
More BacPacs and expansion devices coming soon
